Home /Products/ECG Monitor Machine/Yes Portable Handheld Rapid Heart Rate Detector ECG Monitor Machine With ECG Cable

Yes Portable Handheld Rapid Heart Rate Detector ECG Monitor Machine With ECG Cable

1 Unit
MOQ
Yes Portable Handheld Rapid Heart Rate Detector ECG Monitor Machine With ECG Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN-8121
Power Source: Electric
Warranty: Lifetime
After-sale Service: Return And Replacement
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Type: ECG Monitor With Cable
Display: 7 Inch Color LCD
Alphabet Keyboard: Yes
USB/RS232 Interface: Yes
Recording Paper: 215mm Roll Paper And 210*140mm Z-fold Paper
Rechargeable Li-ion Battery: It Can Work About 2 Hours
Lead: Standard 12 Leads
Working Modes: Manual/Auto/Arrhythmia Analysis Modes
Indterpretation Function: Yes
Storage: 250 Patients Save/reply
Basic Infomation
Certification: ce
Model Number: SUN-8121
Payment & Shipping Terms
Product Description
Products Description
Portable handheld rapid heart rate detector ECG monitor machine with ECG cable

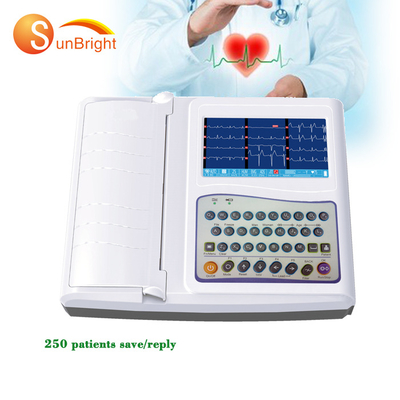

ECG machine SUN-8121 is digital 12 channel physiological function measurement equipment which records the heart waveform during electro-biological movement. It provides sufficient information on the analysis of arrhythmia and cardiovascular disease, helps to know the pathological disorder caused by some drugs and electrolyte, or unbalance of PH value. It is important equipment for cardiac disease examination, and its compact size makes it suitable for use while visiting patients at home.
Physical Specifications:

FAST DESCRIPTION

Portable 12 channel ECG machine Work modes: Manual/Auto/Arrhythmia analysis modes 7 inch colour LCD with Alphabet keyboard Alphabetic keyboard for patient information Built in rechargeable Li-ion battery Adaptor 110-230V, 50/60Hz AC power supply Real-time ECG waveform, 250 patients save/replay Built in USB/RS232 interface(ECGNET software Optional)
Physical Specification
* Lead standard 12 leads
* Calibrating voltage: 1mV±2%
* Voltage tolerance: ≥±500mV
* Inter-channel interference:≤0.5mm
* Frequency response: 0.05~160Hz(-3db)
* Patient current leakage: <10μA
* Noise level: <15μVp-p
* Sensitivity valve: ≤20μV
* Paper speed:6.25,12.5, 25,50mm/s(±3%)
* Time constant: ≥3.2s
* Input dynamic range: ±10Vpp
* Filter: AC flter: 50Hz / 60Hz ,EMG filter: 25Hz / 45Hz ,Anti-drift filter: 0.15Hz(Adaptive)
* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA
* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect

Standard Configuration:
Patient cable 1 set
Limb electrode 4 sets
Chest elelctrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
