Home /Products/ECG Monitor Machine/High Quality Contec ECG300G Portable ECG Recorder Digital Three Channel Electrocardiograph Ecg Ekg Monitor Machine

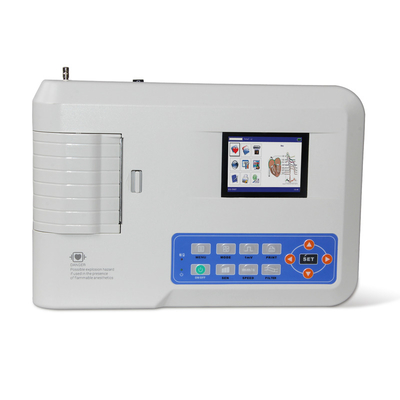

High Quality Contec ECG300G Portable ECG Recorder Digital Three Channel Electrocardiograph Ecg Ekg Monitor Machine

1 Piece
MOQ
$289.00(1 - 99 Pieces) $269.00(100 - 299 Pieces) $249.00(300 - 499 Pieces) $229.00(>=500 Pieces)
Price
High Quality Contec ECG300G Portable ECG Recorder Digital Three Channel Electrocardiograph Ecg Ekg Monitor Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ECG300G
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Plastic
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: EN 149 -2001+A1-2009
Type: Pathological Analysis Equipments
Certification: CE ISO
Model: Digital 3 Channel ECG Machine
Function: ECG Recorder
Environment Temperature: +5℃~+35℃
Leads: 12
Optional: Software Which Can Transfe
Power Supply AC: 100v-240VAC,50Hz/60Hz
DC: 11.1v,2000mAH Rechargeable Lithium Ion Battery
Basic Infomation
Certification: ce, CE ISO
Model Number: ECG300G, Digital 3 Channel ECG Machine
Payment & Shipping Terms
Packaging Details: 1XECG300G ECG Machine 1XLead cable 1XLimb electrode(4PCS) 1XChest electrode(6PCS) 1XData transmission line 1XThermal recording paper 1XPower cord 1XEarth wire 1XUser manual
Product Description
Product Description
Sinohero ECG300G Portable Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor
● Introduction: ECG300G is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting any rhythm lead, case database management.
● Feature: 1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal. 2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing. 3)Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements. 4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden. 5)Built-in memory stores up to 1000 cases, convenient for case review and statistic. 6)Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakstan, Russian, Ukrainian, Serbian and Slovenian) interface and report.
● Performance: Input mode: floating and defibrillation protection Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB) CMRR: >60dB, >100dB(add filter) Time constant:≥ 3.2s Patient leak current: <10µA Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2% Noise level: <15µVp-p Input circuit current: ≤50nA Input impedance: ≥50MΩ Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof applied part Recording mode: thermal printing system Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record: set record according to record format, manually switching leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Paper size: 80mm(W)×20m(L) Sampling frequency: 1000Hz EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB) Paper speed: Auto: 25, 50mm/s, ±5% Rhythm: 25, 50mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5% Power supply: AC: 100V~240V(50/60Hz) DC: 7.4V/3500mAh rechargeable lithium battery Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V Waterproof degree: IPX0 Working mode: continuous working Optional: ECG-Sync software+USB cable ECG electrode Bag Conductive gel
● Physical characteristic: Working environment Temperature: 5℃~40℃ Relative humidity: 25%~95%(non-condensing) Atmospheric pressure: 700hPa~1060hPa Transport and storage environment Temperature: -40℃~+55℃ Relative humidity: ≤95% Atmospheric pressure: 500hPa~1060hPa Dimension: 315mm(L) × 215mm(W) × 77mm(H) Weigh: 1.6Kg


Product name
SINOHERO H8 Large screen Multi-Parameter Patient Monitor
Type
Detecting Body Health Medical Equipment
Place of Origin
CHINA
Brand Name
SINOHERO
Standard Parameters
ECG,SPO2,NIBP,PR,RESP,TEMP
Memory Storages
Memory Stores Minimum190000 Results
Power Supply
Electricity
After-sale Service
Online technical support
Material
ABS
Quality Certification
CE ISO FDA
Safety standard
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Instrument classification
Class II
Display
High Acuity 12.1" color TFT-LCD Dsiplay and Optional Full Touch Screen
Resolution
1024*768 pixels
Power Input
less than 150VA
Power Voltage
AC 100-240V 50/60Hz
Safety class
Category I
Recommend Products

ECG SE509

3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen * 12 Leads ECG simultaneous acquisition and display * Innovative digital filters&anti-noise technology * Built-in high resolution thermal printer with various 3-channel report printing * Both SD and USB memory enlarge available

ECG SE1208

12-Channel Electrocardiograph * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

ECG SE1200 Lite

3-Channel ECG Machine
* Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Packing & Delivery
Package included: 1XECG300G ECG Machine 1XLead cable 1XLimb electrode(4PCS) 1XChest electrode(6PCS) 1XData transmission line 1XThermal recording paper 1XPower cord 1XEarth wire 1XUser manual
