Home /Products/ECG Monitor Machine/High Quality Medical Healthcare Lead ECG Machine 12 Channel For Wholesale

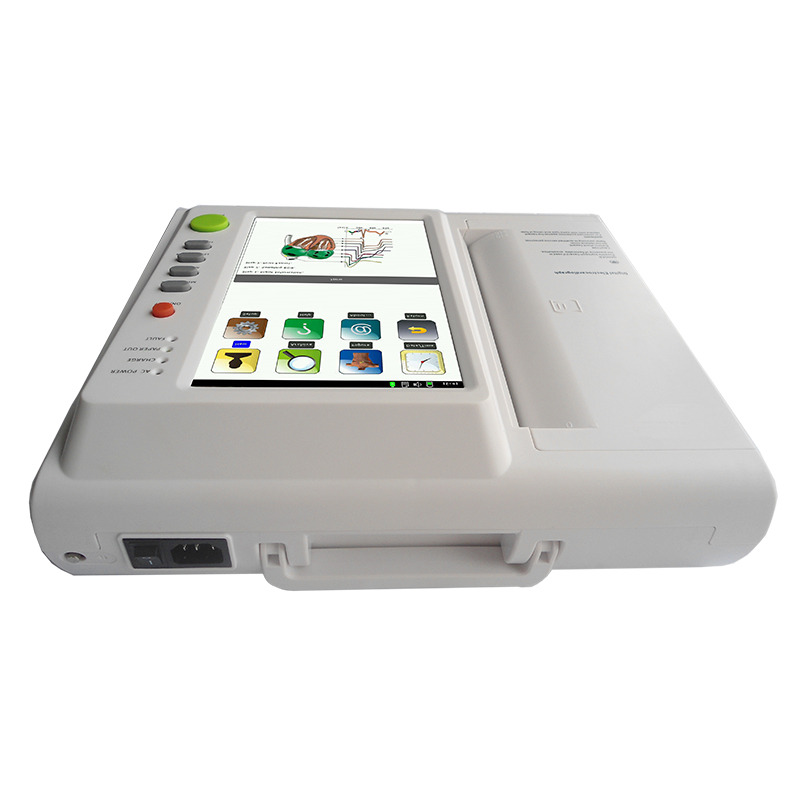

High Quality Medical Healthcare Lead ECG Machine 12 Channel For Wholesale

1 Box
MOQ
$720.00(1 - 4 Boxes) $715.00(5 - 49 Boxes) $710.00(50 - 499 Boxes) $705.00(>=500 Boxes)
Price
High Quality Medical Healthcare Lead ECG Machine 12 Channel For Wholesale
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TQ-7012
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Return And Replacement
Material: Plastic
Shelf Life: 1 Years
Quality Certification: MSDS
Instrument Classification: Class II
Safety Standard: GB9706
Product Name: 12 Channel ECG Machine
Usage: Hospital
Function: ECG Recorder
Display: 10.2 Inch Touch Screen
Package: Cartons
Application: Medical Healthcare
MOQ: 1 Set
Size: 37x31x11 Cm
Color: White
Lead: 12 Leads
Basic Infomation
Certification: MSDS
Model Number: TQ-7012
Payment & Shipping Terms
Packaging Details: 1 set/ carton ; packaging size : 45*22*39 cm ; weight : 6.5 kg
Product Description
Specification
CMRR
≥ 100dB, with AC Filter
Calibrating voltage
1mV± 3%
Input circuit
Floating
Voltage tolerance
± 500mV
Input circuit current
≤ 0.1µ A
Time constant
> 3.2s
Resolution
12bit/1000Hz
Frequent response
0.05Hz~150Hz
Operation mode
Manual/Auto
Noise level
≤ 15µ Vp-p
Filter
AC. EMG Filter
Threshold
≤ 20µ V
Drift filter
Anti-Drift System
Paper speed
12.5, 25, 50mm/s (± 3%)
Input Impedance
> 50MΩ
Sensitivity
5，10，20mm/mV
Patient current
leakage
< 10µ A
Recorder
High resolution thermal printer
Specification of fuse
T1.6A 250V Ø5×20
Battery
Built-in rechargeable Li-ion battery
14.8V(4000mAh)
Recording paper
Thermal recording
paper
Package
365mm×306mm×109mm
Product Description
High quality 12 lead ECG machine channel for wholesale
Function Features of ECG Machine：
★ Modern in design, light in weight, compact in size.
★ Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
★ 10.2'' color touch-screen, both push-button and touch operation.
★ Sensitive filters of ADS, HUM, and EMG.

★ Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
★ Automatic adjustment of baseline for optimal recording.
★ Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
★ Lead off & lack off paper detection function.
★ Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.

★ Adapt to 100-240V, 50/60Hz AC power supply
★ Historical data and patient’s information can be reviewed and printed.
★ Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
★ The machine can store over 500 ECG reports in its built-in flash.
★ Standard RS232 and USB communication interfaces.
★ Connect with PC via ECG workstation software.
★ Sleep mode to save energy and extend LCD life
★ The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
★ Portable design with hidden handle, convenient to carry.
★ 7 level printing thick can be chosen.
Packing & Delivery
packaging ：

Packaging size : 44.5*21*39 cm ;
Packaging weight : 6.5 kg;
Company Profile
FAQ
Q1: Are you manufacturer? A1: Yes, we are professional manufacturer in home medical devices. Our company specialized in digital Blood pressure monitor, Infrared thermometer, Nebulizer and related BT, Wi-Fi smart wearable home medical devices . Our company located in ShenZhen City, GuangDong. You are always welcome to visit us. Q2: Do you have any factory audits? A2: Yes,now we have passed BSCI RHOS ISO9001, ISO13485, CE0123, etc. Q3: How is the quality of your factory? A3: We have strict process control system for raw material control, process control and finished product quality. The finished products will be inspected in the production line before packaging. Q4: Can you provide OEM or ODM service? A4: Yes, we have strong developing team and R&D team to support OEM and ODM service. The products can be made according to your request. Q5: What’s your OEM/ODM MOQ? A5: 1000pcs. For our first cooperation, your small order is acceptable, but the price is a little highly, you know, the price is based on quantity. Q6: What's your quality guarantee period? A6: 2 Years from shipment. Q7: Do you have in stock? A7: Now we just have small amount in Stock . The sooner you book, the sooner you get the goods. Our capacity about 90,000pcs thermometer in one month .
