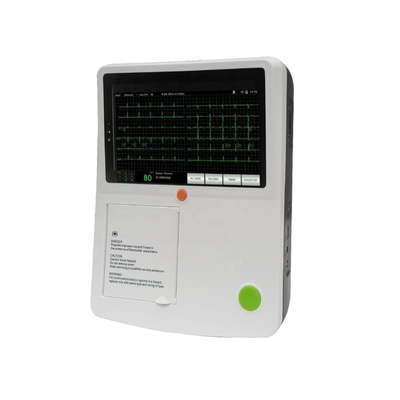

Item No. | 3 channel veterinary ecg machine |
Screen | 7 inch |
MOQ | 2pcs |
Dimension | 256mm*204mm*66mm |
CMRR | ≥100dB,with AC Filter | Calibrating voltage | 1mV±3% |
Input circuit | Floating | Voltage tolerance | ±500mV |
Input circuit current | ≤0.1μ A | Time constant | >3.2s |
Resolution | 12bit/1000HZ | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/Auto | Noise level | ≤15μ Vp-p |
Filter | AC.EMG Filter | Threshould | ≤20μ V |
Drift filter | Anti-Drift System | Paper speed | 12.5,25,50mm/s(±3%) |
Input impedance | >50MΩ | Sensitivity | 5,10,20mm/mV |
Patient current leakage | <10μ A | Recorder | High resolution thermal printer |
Battery | Bulit-in rechargeable LI-ion battery | Recording paper | Thermal recording paper |
